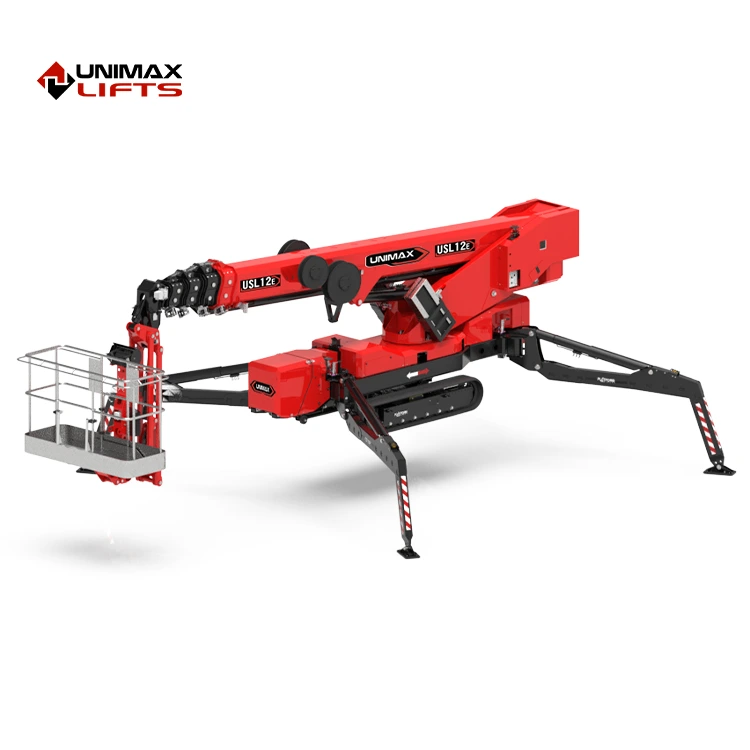

| Machine Model | USL12E | |
| Max. Working Height | 12m | 39.37 ft |
| Max. Platform Height | 10m | 32.81 ft |
| Max. Horizontal Outreach | 6m | 19.69 ft |
| Platform Capacity Restricted | 200kg | 440.92 lb |
| Platform Capacity Unrestricted | 120kg | 264.55 lb |
| Platform Size Standard | 0.9m*0.7m | 2.95 ft × 2.30 ft |
| Platform Size Optional | 1.2m*0.8m | 3.94 ft × 2.62 ft |
| Stowed Length | 5.2m | 17.06 ft |
| Stowed Width | 1.6m | 5.25 ft |
| Stowed Height | 2.1m | 6.89 ft |
| Outrigger Footprint | 3mx4.7m | 9.84’×15.42′ |
| Total Mass | 1855kg | 4,090 lb |
| Turret rotation | ± 355° | |
| Wind Resistance Level | 12.5m/s | 28 mph |
| Working Temperature | -25~60℃ | 13~140℉ |
| Electric Motor Power | 220V/380V,4.5kW | 220V/380V,6 hp |
| Drive Speed | 0~4km/h | 0~2.5 mph |
| Gradeability | 16.7°/30% | |
| Slope Tolerance | 10° | |
| Diesel Engine(Optional) | Kubota/Yanmar | |
| Gasoline Engine(Optional) | Honda GX | |
| Lithium Battery Power(Optional) | 24V/200Ah/5h | |
| Wireless Remote Control | Optional | |
| Width Adjustable Track | Optional | |
| Automatic Levelling | Optional | |
| Grey Non-marking Tracks | Optional | |
| Customized Color Painting | Optional | |
| Power Options: | *H: Hybrid G:Gasoline, D: Disel E:Electric B:Battery | |
FAQ
Q: What is the narrowest width of your spider lift when folded?
A:Our narrow model can pass through a 0.8-meter doorway, making it easy to enter and work indoors or in narrow passages.
Q:What safety features are standard on your spider lifts?
A:It is equipped with anti-tilt protection, overload alarm, emergency stop system, and outrigger interlock protection to ensure safe operation.
A:It is equipped with anti-tilt protection, overload alarm, emergency stop system, and outrigger interlock protection to ensure safe operation.
Q:What is the maximum working height of your spider lifts?
A:Our product line covers working heights from 12m to 52m, and we can recommend the most suitable model according to your specific job requirements.
A:Our product line covers working heights from 12m to 52m, and we can recommend the most suitable model according to your specific job requirements.
Q:What power options are available for spider lifts?
A:We offer three types: full-electric, diesel, and hybrid models, to adapt to different environments such as indoor, outdoor and remote construction sites.
A:We offer three types: full-electric, diesel, and hybrid models, to adapt to different environments such as indoor, outdoor and remote construction sites.
Q: What safety devices come standard with the spider lift?
A: It is equipped with overload protection, anti-tilt alarm, emergency lowering system, and outrigger interlock function to ensure safe operation.
A: It is equipped with overload protection, anti-tilt alarm, emergency lowering system, and outrigger interlock function to ensure safe operation.
Q:Can the working platform be modified to meet special needs?
A: Yes, we support customized platform sizes, anti-slip designs, and special attachments like glass suction cups and maintenance brackets.
A: Yes, we support customized platform sizes, anti-slip designs, and special attachments like glass suction cups and maintenance brackets.
