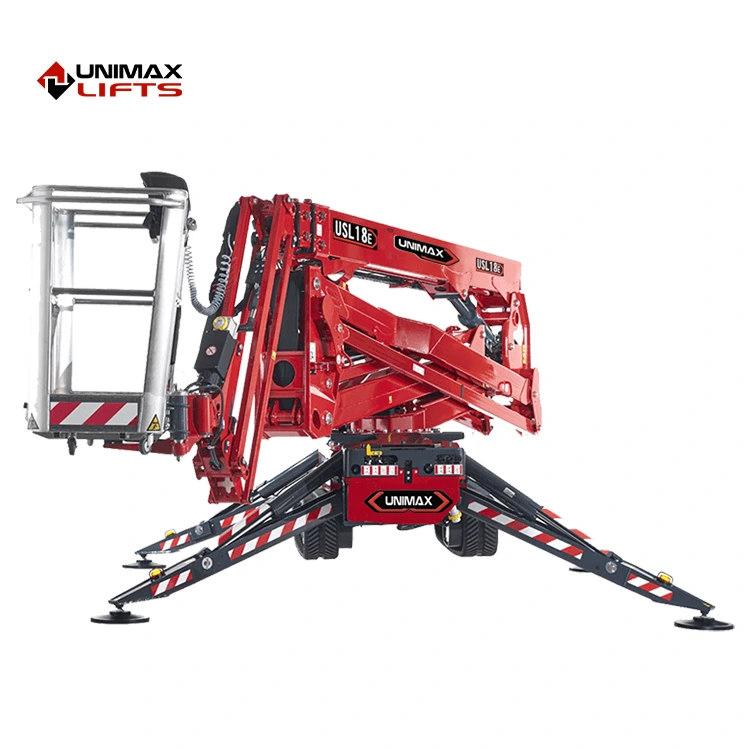

| Machine Model | USL18E | |
| Max. Working Height | 18m | 59.06ft |
| Max. Platform Height | 16m | 52.49 ft |
| Max. Horizontal Outreach | 10.5m | 34.45ft |
| Platform Capacity Restricted | 200kg | 440.92 lb |
| Platform Capacity Unrestricted | 120kg | 264.55 lb |
| Platform Size Standard | 0.9m*0.7m | 2.95 ft × 2.30 ft |
| Platform Size Optional | 1.2m*0.8m | 3.94 ft × 2.62 ft |
| Stowed Length | 5.7m | 18.70ft |
| Stowed Width | 1.7m | 5.58 ft |
| Stowed Height | 2.2m | 7.22ft |
| Outrigger Footprint | 3.9mx4.9m | 12.80ft×16.08ft |
| Total Mass | 2500kg | 5511.56lb |
| Turret rotation | ± 355° | |
| Wind Resistance Level | 12.5m/s | 28 mph |
| Working Temperature | -25~60℃ | 13~140℉ |
| Electric Motor Power | 220V/380V,7.5kW | 380V/10 hp |
| Drive Speed | 0~4.8km/h | 0~2.98mph |
| Gradeability | 16.7°/30% | |
| Slope Tolerance | 10° | |
| Diesel Engine(Optional) | Kubota/Yanmar | |
| Gasoline Engine(Optional) | Honda GX | |
| Lithium Battery Power(Optional) | 24V/200Ah/5h | |
| Wireless Remote Control | Optional | |
| Width Adjustable Track | Optional | |
| Automatic Levelling | Optional | |
| Grey Non-marking Tracks | Optional | |
| Customized Color Painting | Optional | |
| Power Options: | *H: Hybrid G:Gasoline, D: Disel E:Electric B:Battery | |
FAQ
Q: Can the spider lift work on stairs or multi-level sites?
A:Yes, the tracked chassis and low center of gravity allow it to climb gentle stairs and move between different levels, which is a big advantage for building renovations.
Q:How long does it take to fully set up the spider lift on site?
A:The outrigger setup and self-leveling process can be completed in 3-5 minutes by a single operator, which greatly improves work efficiency.
A:The outrigger setup and self-leveling process can be completed in 3-5 minutes by a single operator, which greatly improves work efficiency.
Q:What happens if the spider lift loses power while working?
A:The unit is equipped with an emergency power drop system, allowing the platform to be lowered safely to the ground even if the main power fails.
A:The unit is equipped with an emergency power drop system, allowing the platform to be lowered safely to the ground even if the main power fails.
Q:Do you offer on-site commissioning support after delivery?
A:For large orders, we can arrange engineers to provide on-site commissioning and training, or guide you through the process via video call.
A:For large orders, we can arrange engineers to provide on-site commissioning and training, or guide you through the process via video call.
Q:Can you provide third-party inspection services before shipment?
A: Yes, we fully support third-party inspections such as SGS or BV before shipment, to ensure the equipment meets your specifications.
A: Yes, we fully support third-party inspections such as SGS or BV before shipment, to ensure the equipment meets your specifications.
Q:What is the MOQ for your spider lifts?
A: The MOQ is 1 unit, so you can order a single machine for your own use or multiple units for fleet expansion.
A: The MOQ is 1 unit, so you can order a single machine for your own use or multiple units for fleet expansion.
